Compatible with Corsair RM/RMX/RMi/HX/HXi/AX/AXi/SF/TX/TX-M/CS/CS-M/CX/CX-M series modular PSUs - AX760I/AX860I/AX1500I/AX760/AX850/AX860/HX1200I/HX1000I/HX850I/HX750I/RM1000I/RM850I/RM750I/RM650I/RM1000X/RM850X/RM750X/RM650X/RM550X/RM1000/RM850/RM750/RM650/RM550/RM450/SF600/SF450; Greatwall BTX-650SD/750SD/1000SD/EPS 1250DA/1560DA,Cougar CMX400W/450W/CX series/GX800W/GX600W/GX1050W,Antec Neo Eco 400M/650M/550M, Tt smart SE530/SE730
Compatible with Thermaltake toughpower xt platinum 1275W/775W, OCZ 500M/700M XSP series, OCZ 700w mod x stream-pro, RGB GOLD, RGB PLATINUM, ARGB GOLD .CoolerMaster Modular PSUs :MWE Gold V1,V2
Compatible with 6-pin & 8-pin graphics cards from popular manufacturers from ASUS,ASRock,Radeon,Sapphire,EVGA and Gigabyte ;NOTE - The 8 pin (6+2) ends could be used as 6 pin or 8 pin end by sliding on/off the 2 pin !!!Length:(Approx) 24+9 -inches,Gauge: standard 18AWG - UL1007 ; ribbon cable;

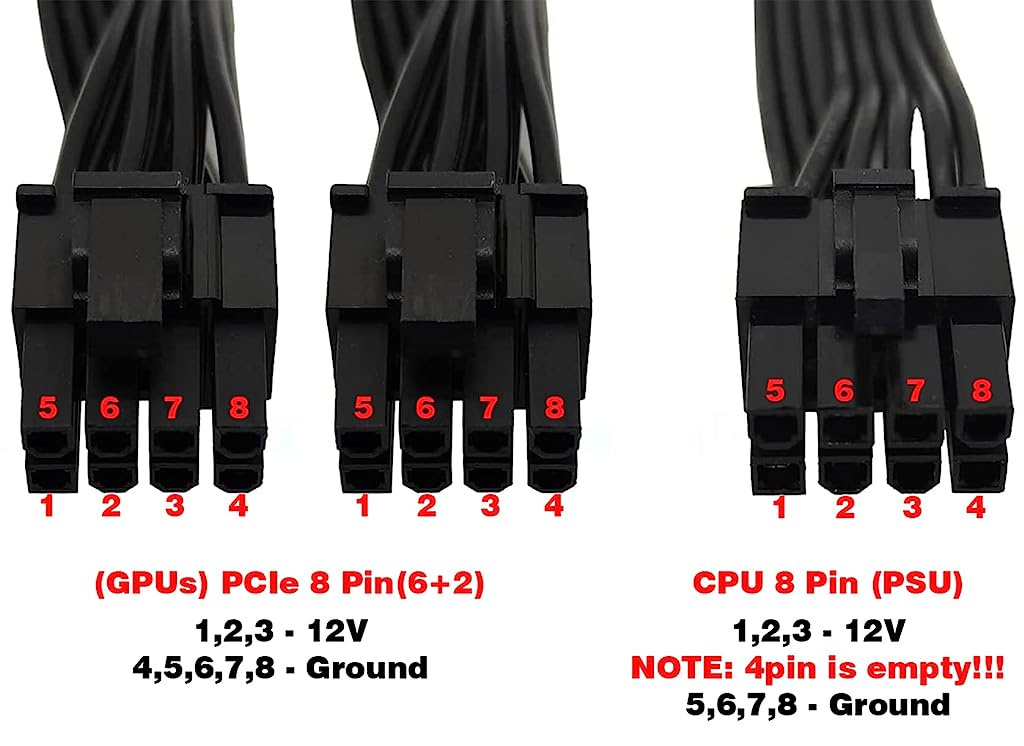

8 pin male end to connect to the power connector of power supply (NOTE: 8 pin male connector is ATX 8 pin, not pci-e 8 pin.) and two PCIe 8 pin(6+2) male ends to plug into the video graphics card

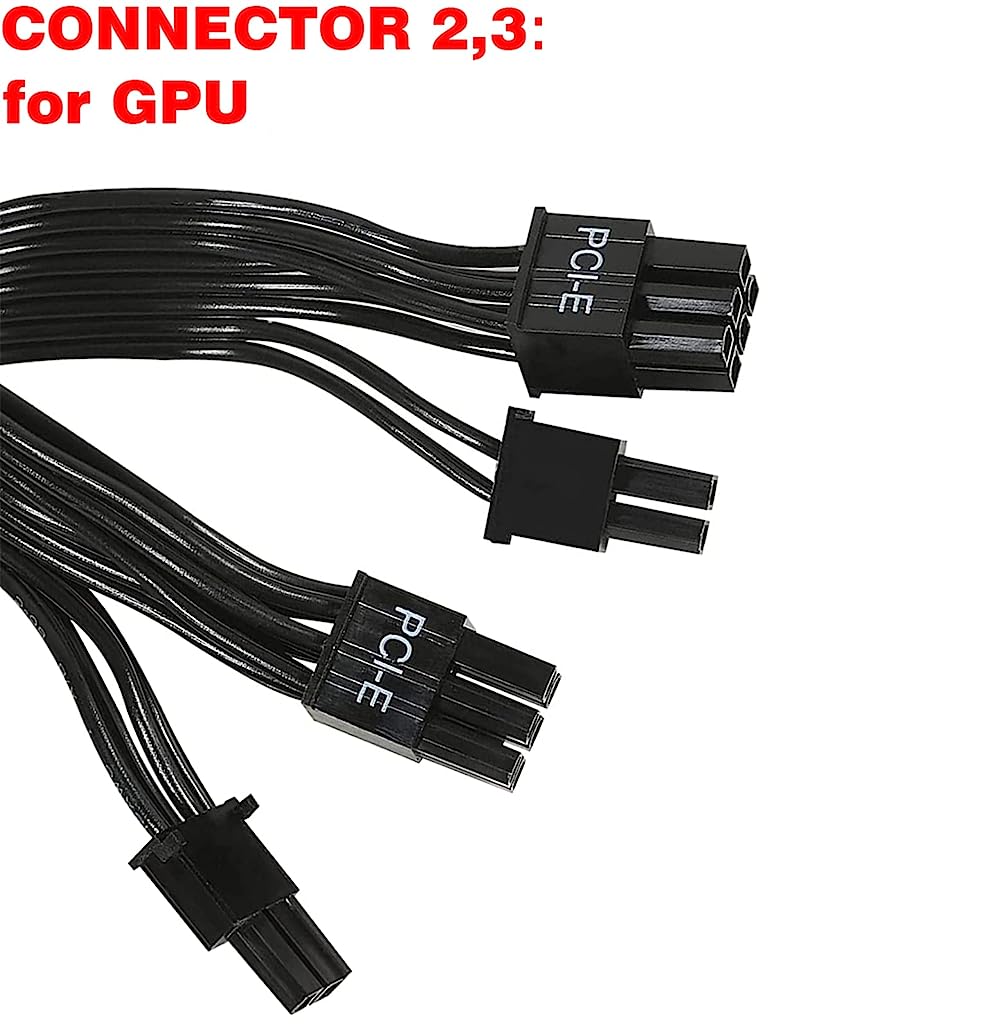

Connector 1 : 8 Pin male ; Connector 2,3 : 8(6+2) Pin male PCIe
